Hinge system

High-Performance. Reliable. Trusted by Cabinet Makers.

Advanced Buffer Mechanism

Fast response. Silent operation. Long-term durability.

The cabinet door opens effortlessly and closes smoothly using an advanced hydraulic damper system that absorbs shocks, regulates closing speed, and eliminates noise.

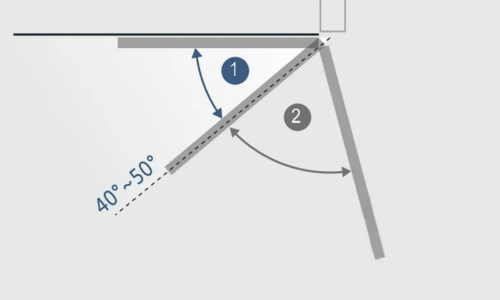

Soft-close activation zone: 40°–50°
Force-free zone: Door remains stable at any opening position

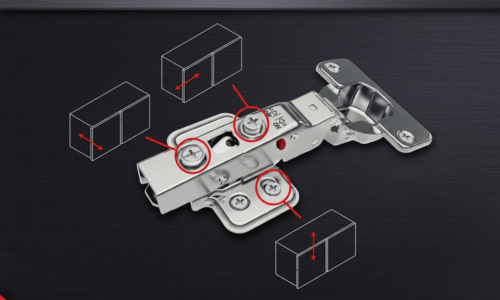

6-Way Adjustment for Precise Alignment

Achieve perfect door positioning through integrated cam adjustment:

Height adjustment: ±2 mm
Side adjustment: 0.5 mm (left) / 3.5 mm (right)
Depth adjustment: ±2.25 mm

Technical Performance

Opening angle: 105°
Door thickness: 16–22 mm
Durability: Tested for 100,000 cycles under normal installation and usage

f-3
f-4
f-5
f-6
f-7

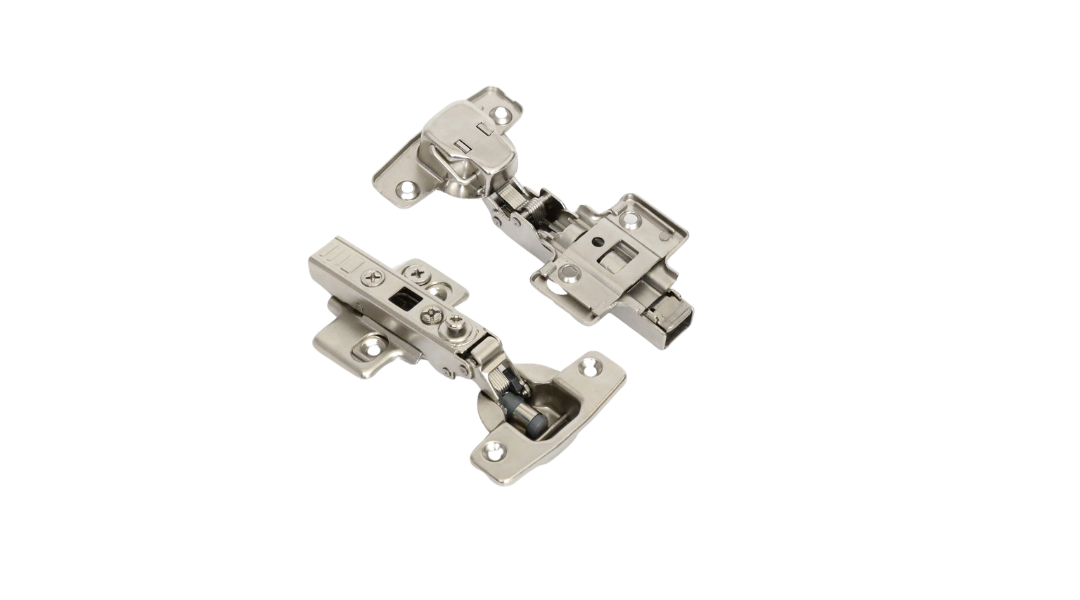

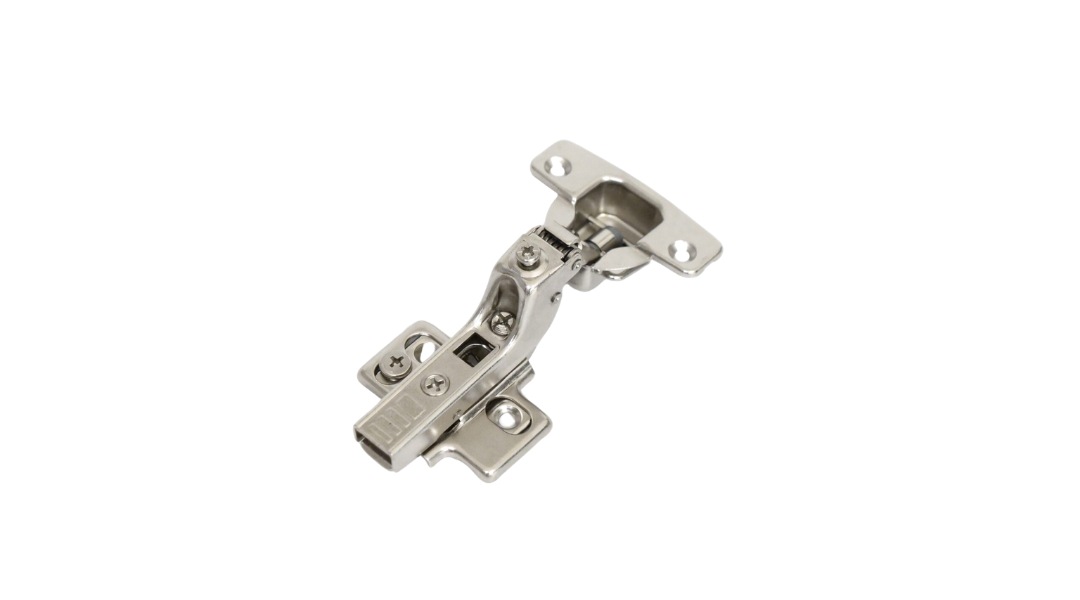

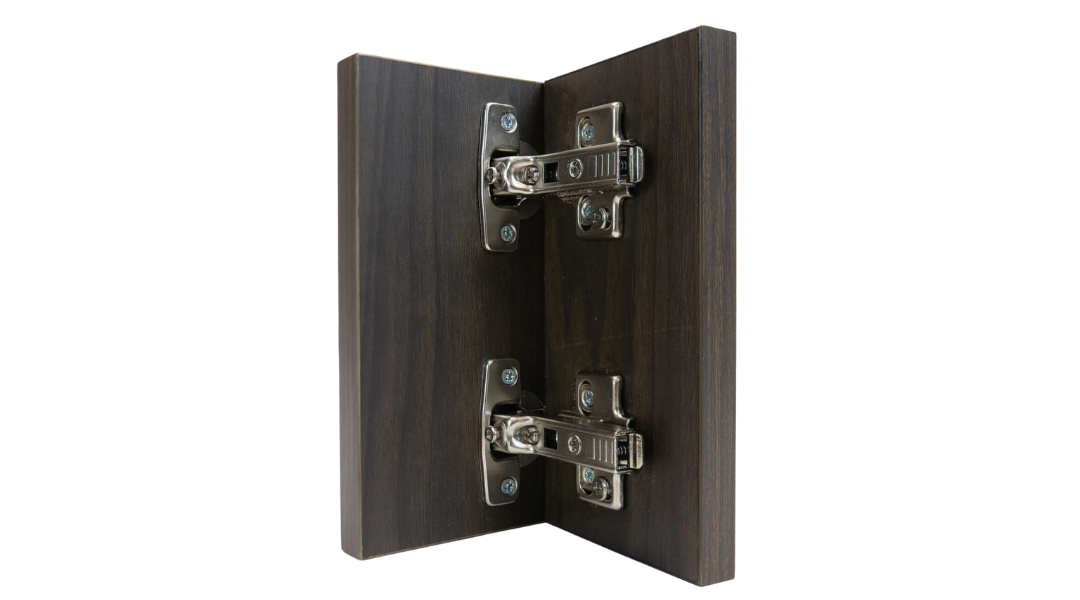

Rigel 1352: 4D Soft closing mechanism

Materials: Iron
Finish: Nickel plated
Diameter of hinge cup: 35mm
Opening degree: 105°
Door thinckness: 14-22mm
Durability: 100,000 Cycles
Product features: Smooth and quietness, Easy installation and removal for the base, Quick adjustment in large angle

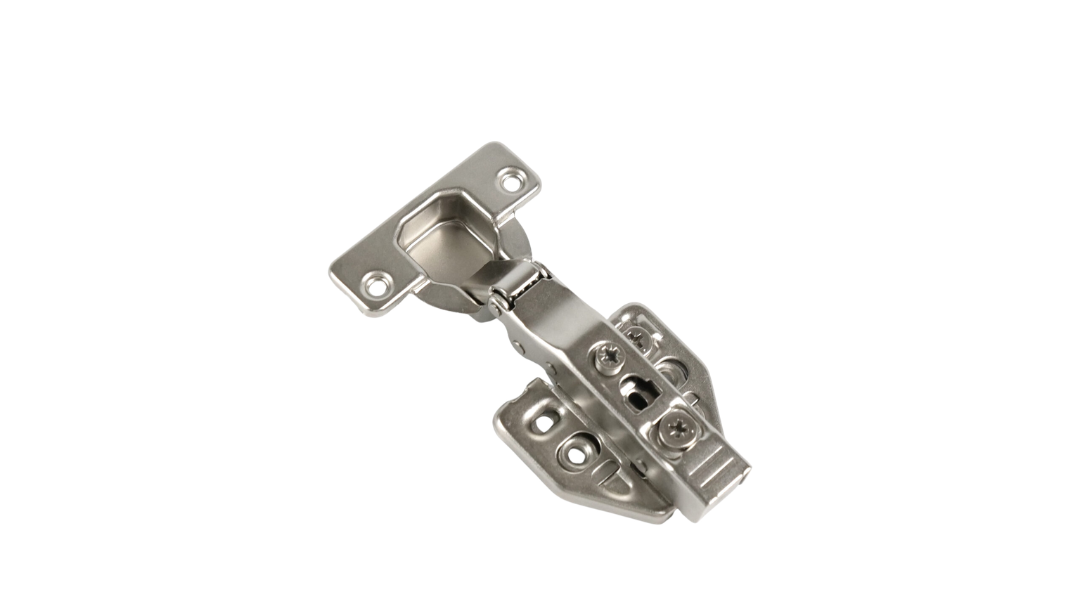

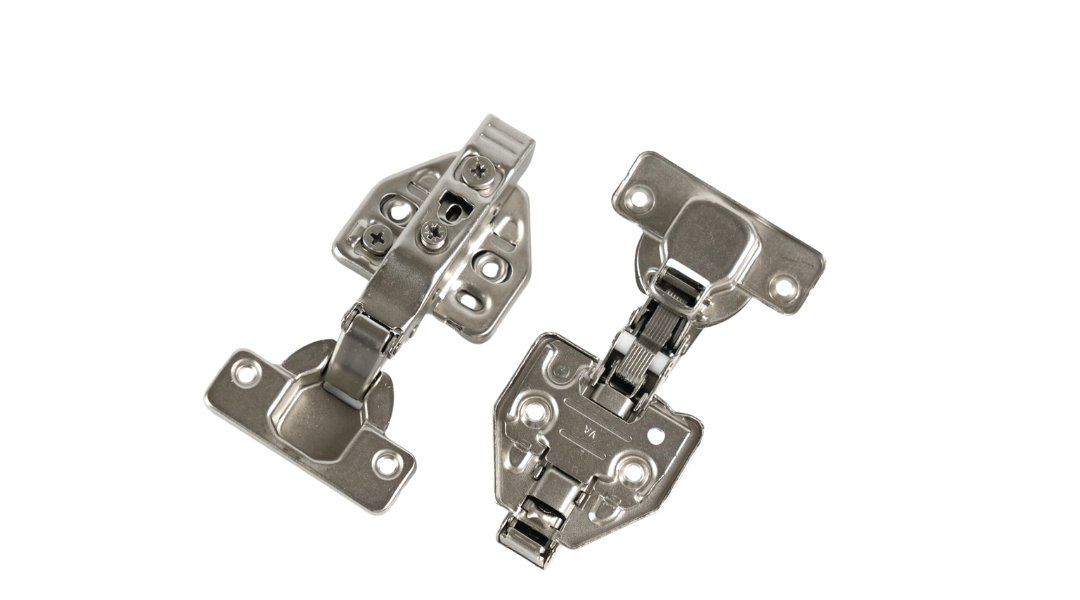

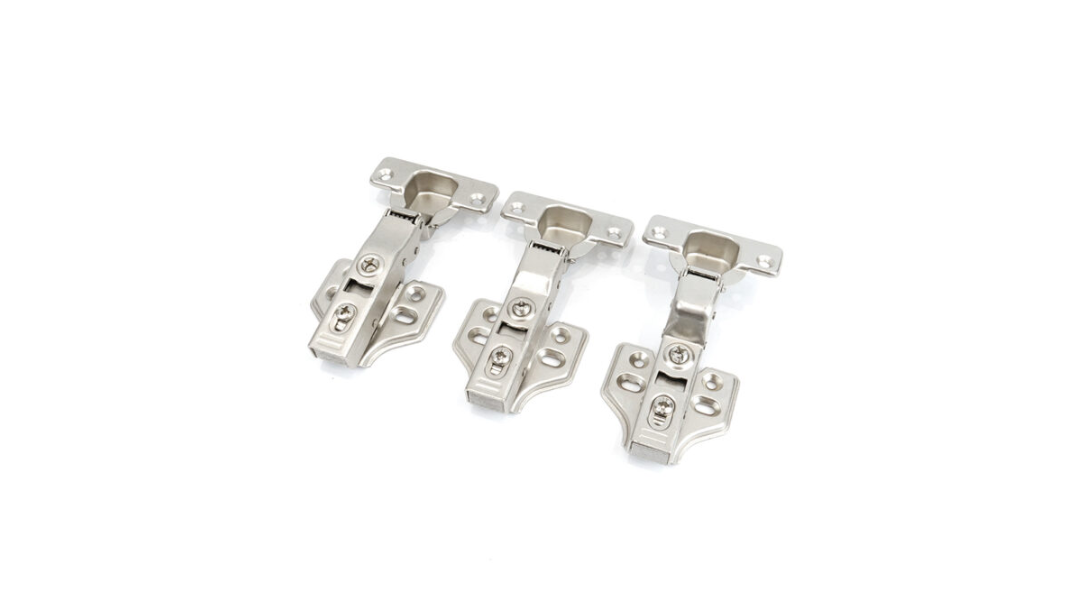

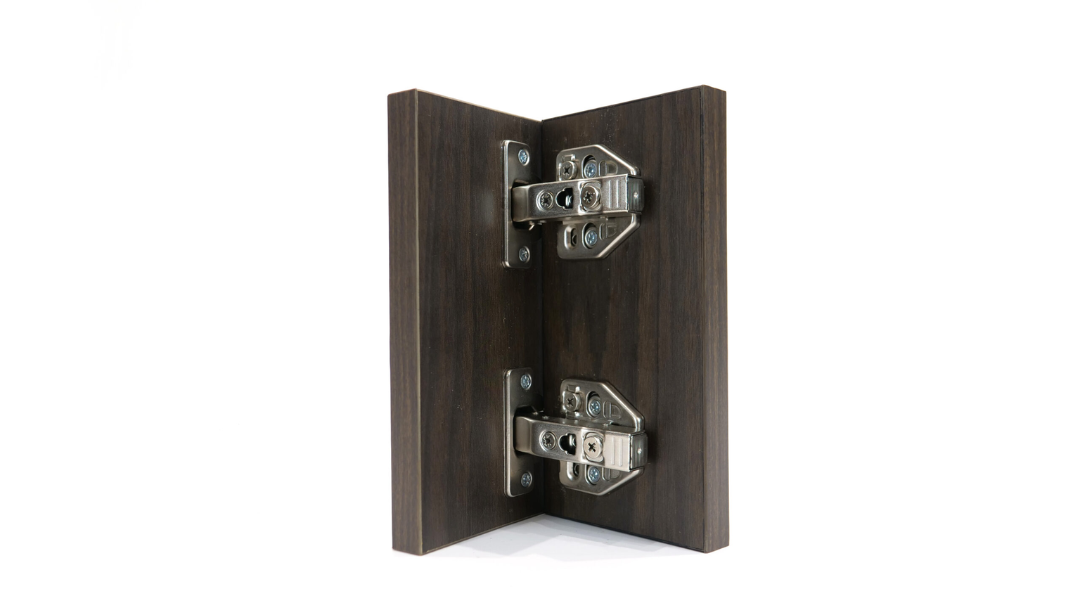

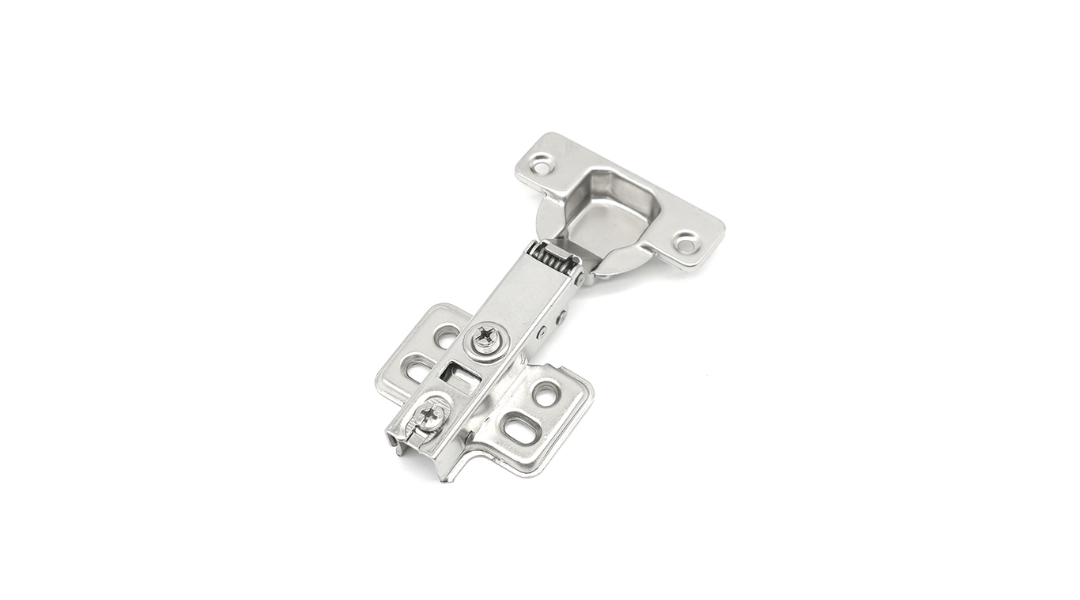

Rigel 1128: 3D Soft closing mechanism

Materials: Iron
Finish: Nickel plated
Diameter of hinge cup: 35mm
Opening degree: 105°
Door thinckness: 14-22mm
Durability: 100,000 Cycles
Product features: Smooth and quietness, Easy installation and removal for the base, Quick adjustment in large angle

f-8

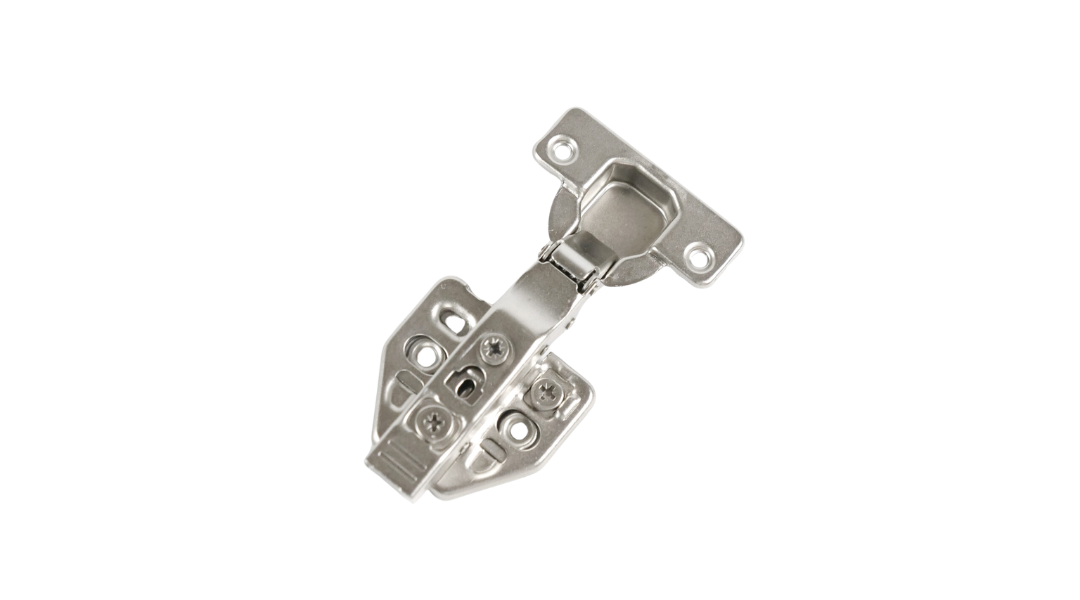

f-9
f-10
f-11
f-12
f-13
f-14

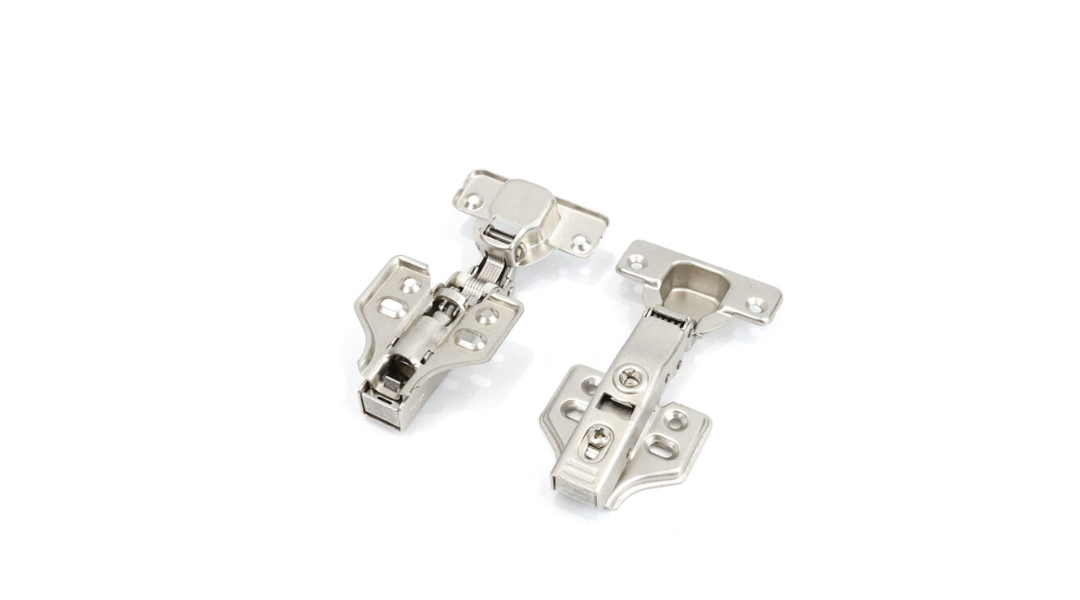

f-15

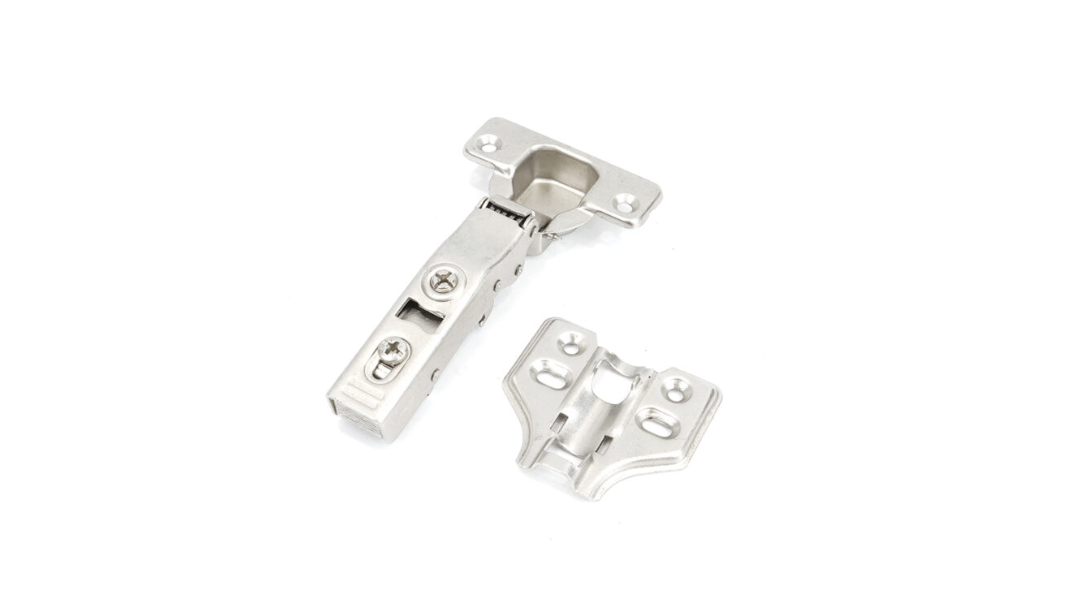

f-16

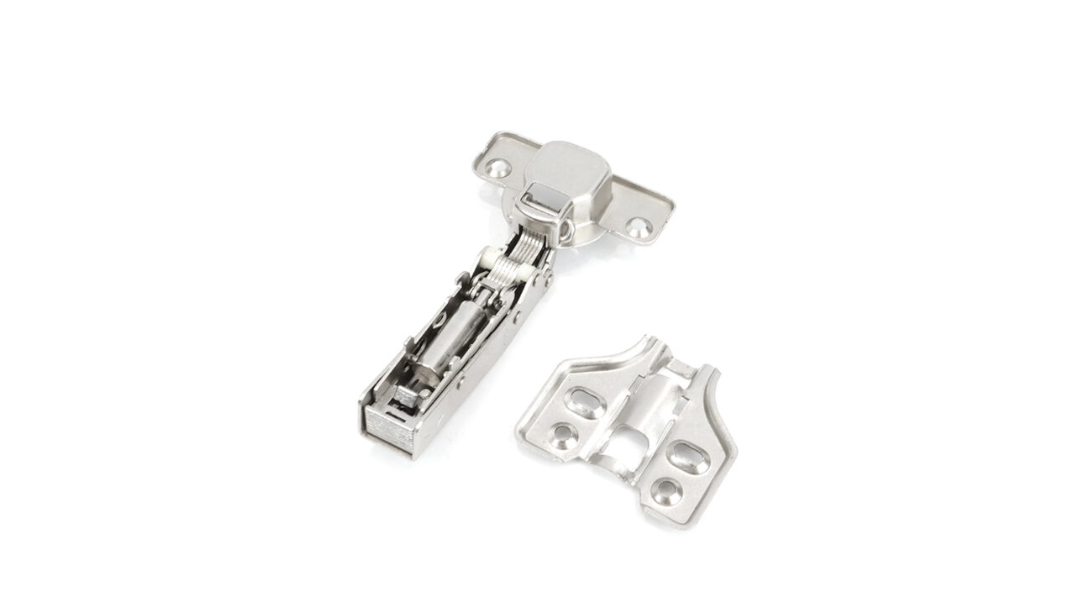

f-17

Rigel 1651: 2D Soft closing mechanism

Materials: Iron
Finish: Nickel plated
Diameter of hinge cup: 35mm
Opening degree: 105°
Door thinckness: 14-22mm
Durability: 100,000 Cycles
Product features: Smooth and quietness, Easy installation and removal for the base, Quick adjustment in large angle

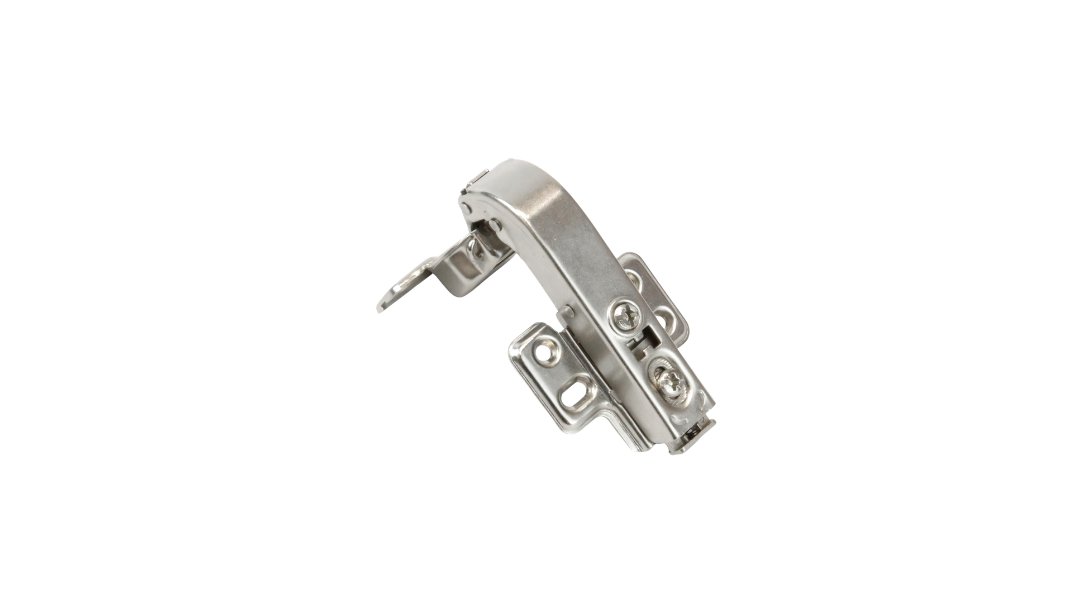

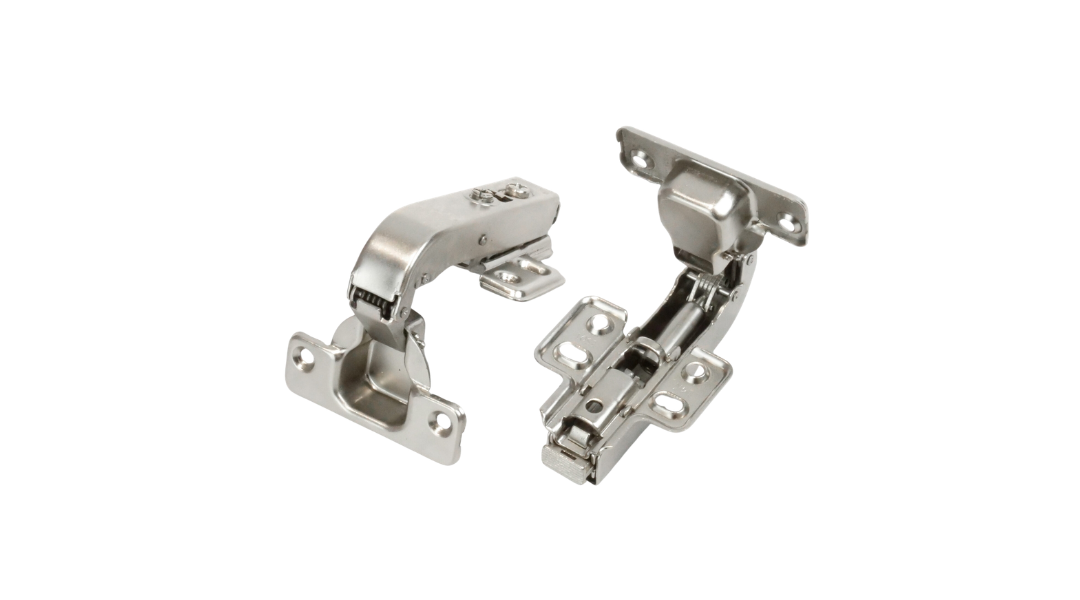

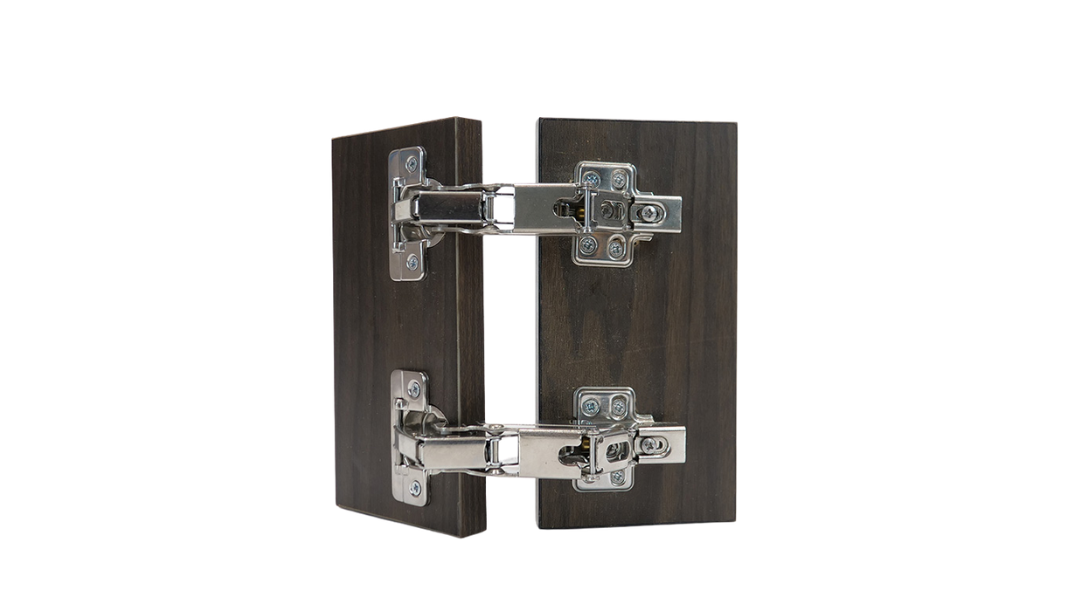

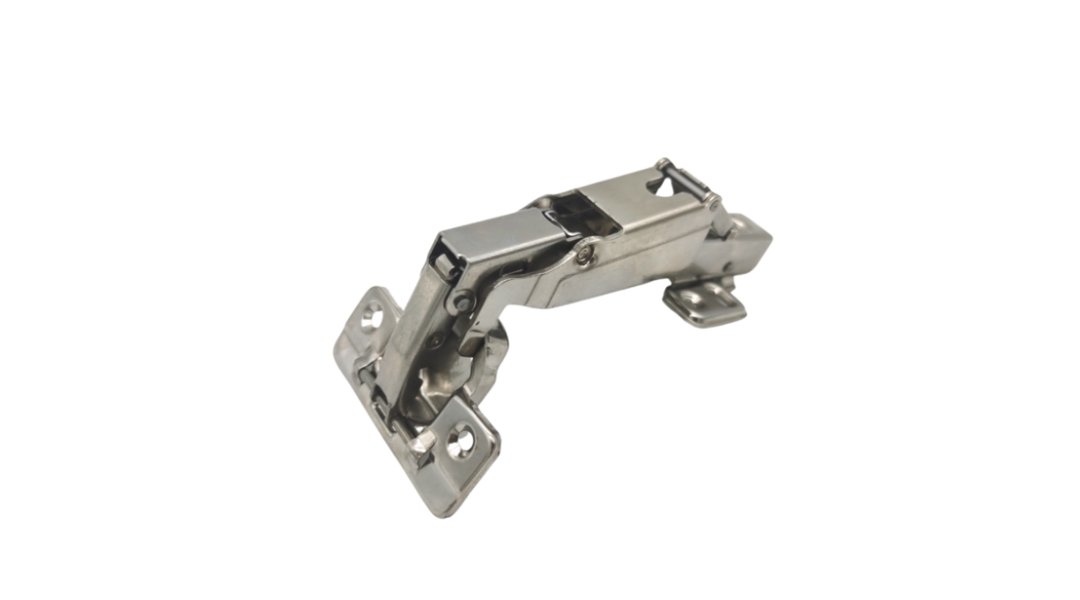

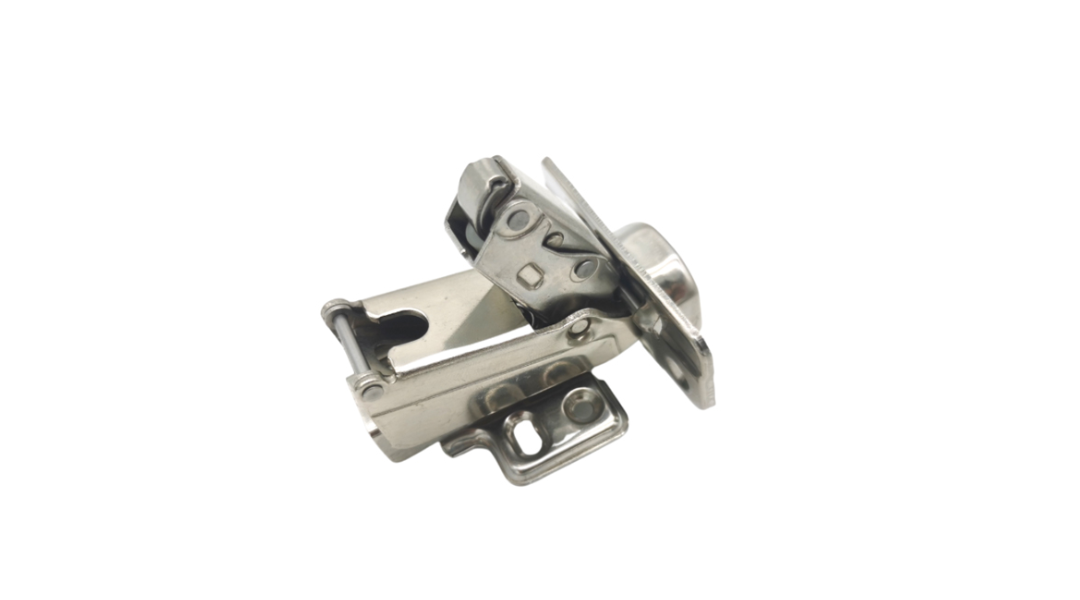

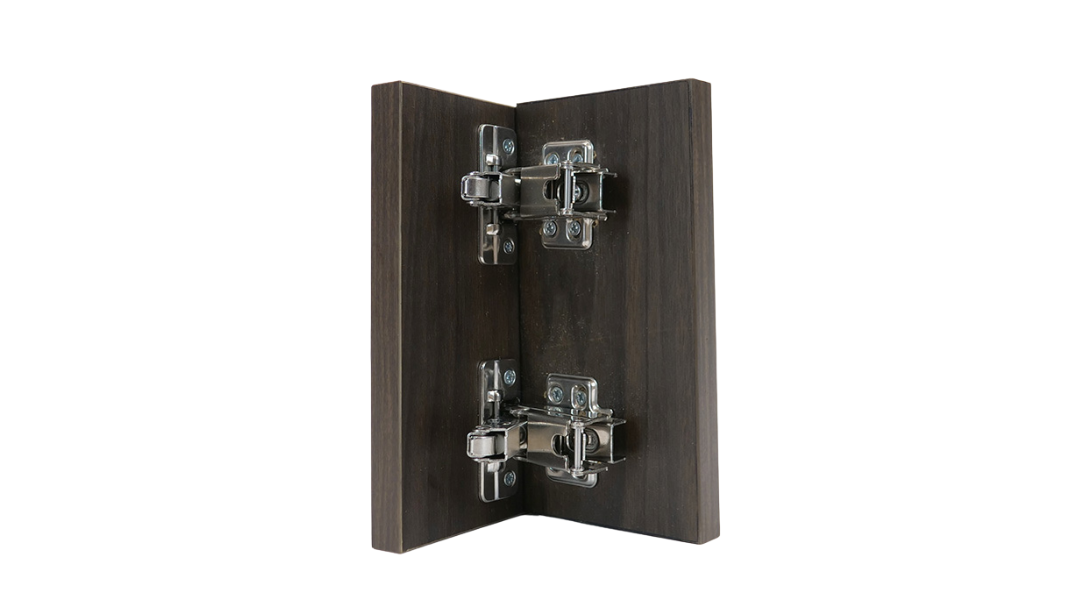

Rigel 165° Soft Closing corner Hinge

Materials: Stainless Steel
Finish: Nickel plated
Diameter of hinge cup: 35mm
Opening degree: 165°
Door thinckness: 14-22mm
Durability：100,000 Cycles
Product features: Buffering in small angle, Smooth and quietness, Easy installation and disassemble

f-18
f-19
f-20
f-21
f-22
f-23
f-24

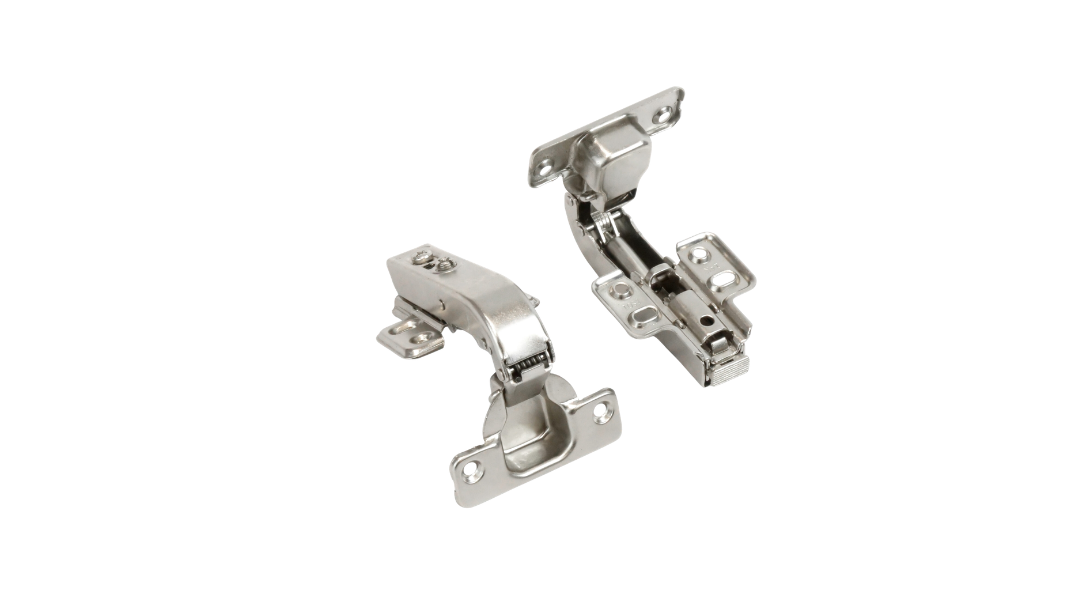

f-25
f-26
f-27

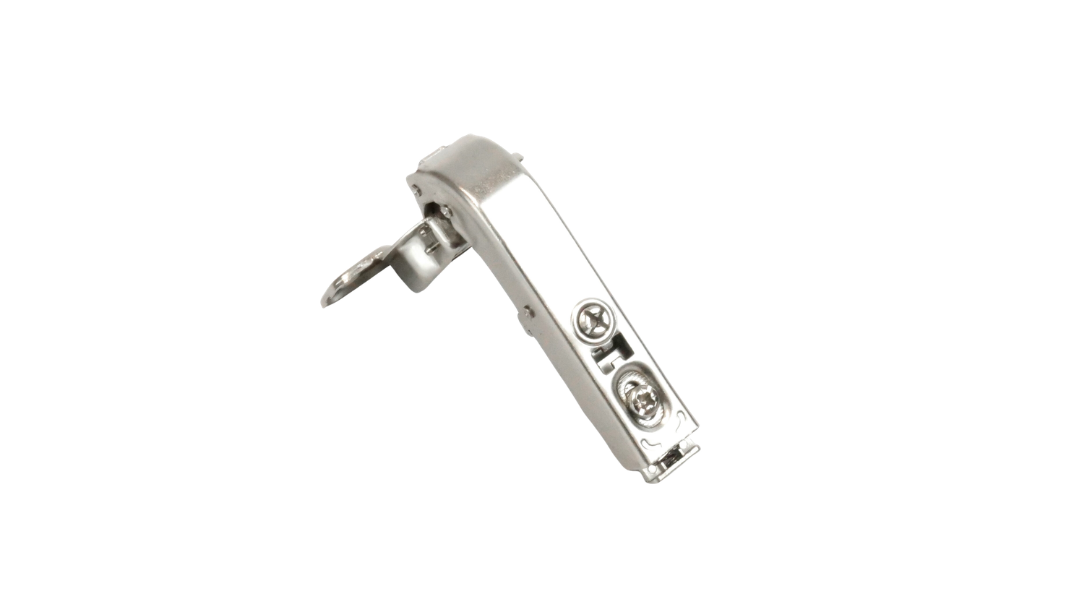

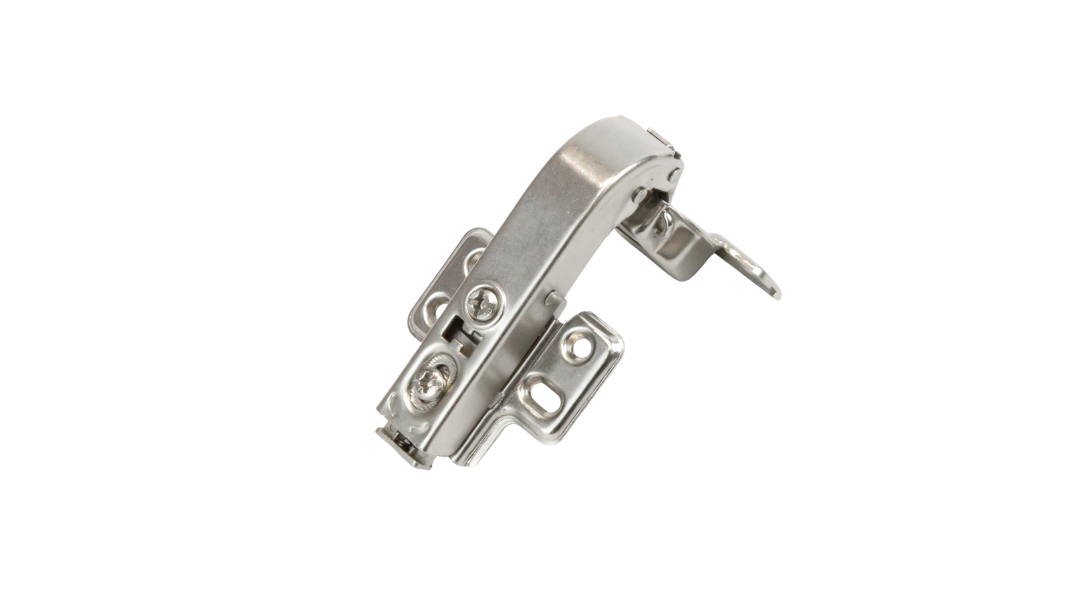

Rigel 90° Soft Closing corner Hinge

Materials: Stainless Steel
Finish: Nickel plated
Diameter of hinge cup: 35mm
Opening degree: 90°
Door thinckness: 14-22mm
Durability：100,000 Cycles
Product features: Buffering in small angle, Smooth and quietness, Easy installation and disassemble"
